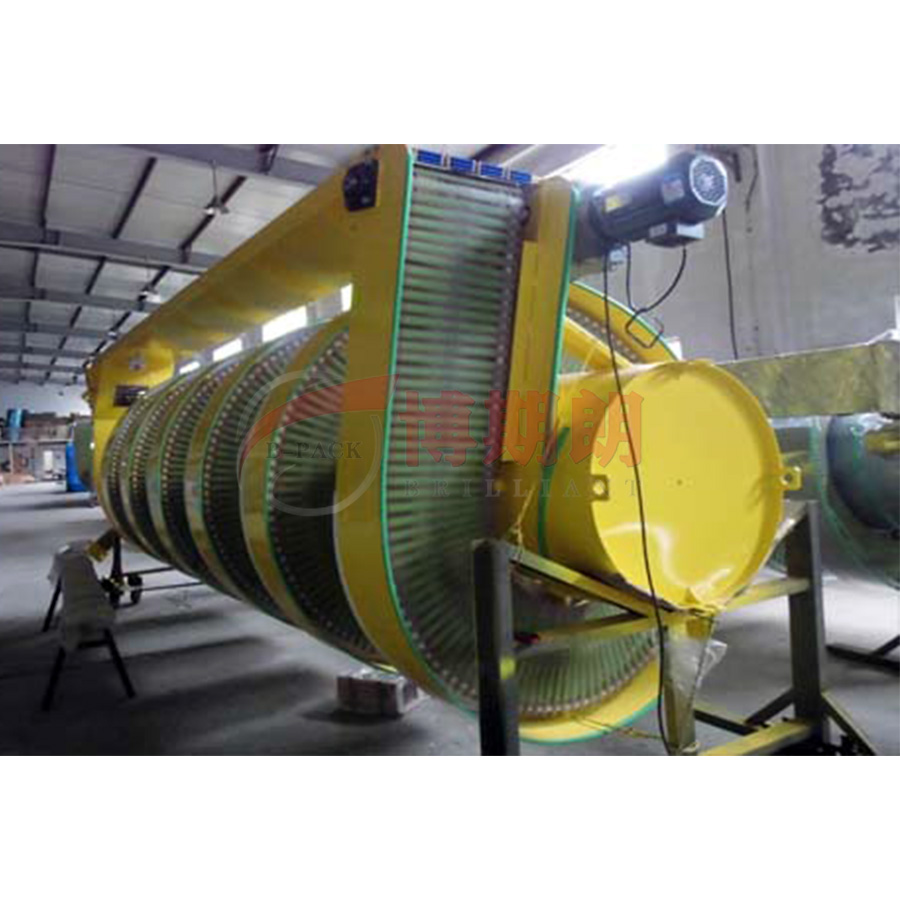

spiral machine

Features of spiral lifting conveyor: Suitable for conveying in small spaces for lifting or lowering, space saving, easy maintenance, long service life,

and can be used in conjunction with products that need to be temporarily stored, cooled, or continuously transported up and down during the production process,

as well as in and out of storage systems.

Application industries: pharmaceuticals, chemicals, electronics, food, beverages, newspapers, postal services, logistics, printing,

automated warehousing, and other industries.

Equipment material: Carbon steel (surface: baked paint treatment), stainless steel SUS304 (surface sandblasted treatment)

Equipment single power spiral conveyor length: 75 meters for carbon steel low chain and 50 meters for stainless steel low chain

Conveyor width: 200mm, 300mm, 400mm, 600mm.

Adjustable height: The effective conveying height of a single power source is 8 meters. Actual parameters may vary depending on product weight,

equipment operating speed, and product dimensions. Multiple devices can be stacked up to 20 meters high to meet the production needs of high-rise buildings.

Each device has a single power * * load-bearing capacity: carbon steel low chain<750Kg
